Frame size: 8" (DTF 2-8-1)

Number of slots: 25

Number of handles: 1 or 2

Frame pitch / slot height: 3.6mm

Numbered Slots: Yes

Material: Aluminum

Surface finish: Anodized

Cover Materials: Aluminum, PAS-PE10, Plexiglass

Frame Types : DISCO or K&S

Width: 288mm

Depth: 280mm

Height: 205mm

Weight: 2.75 kg

Certification: SEMI Standard G77-0699 compliant

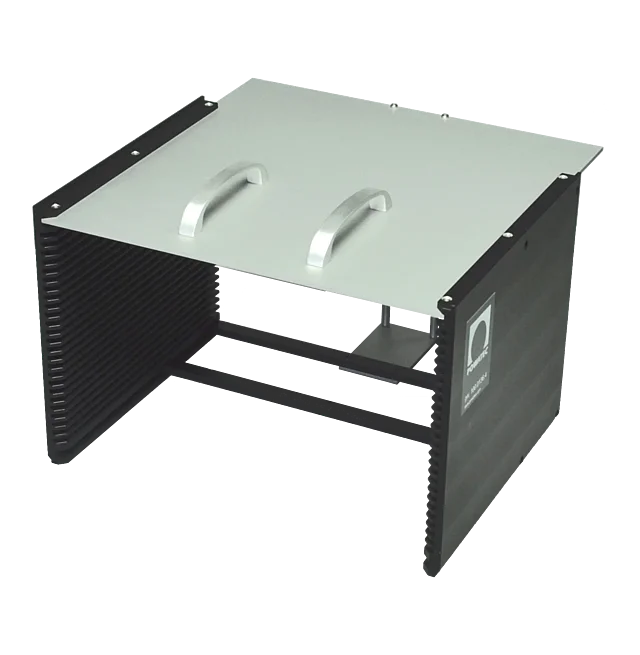

The magazine is manufactured entirely in Switzerland to the highest quality standards. The side plates are completely milled from solid aluminum plates, maintaining the smallest tolerances. The magazine is suitable for fully automatic production processes according to SEMI standard, either to eject frame carriers from the rear or to remove them from the front by a robot. Precision in slot tolerances does play a decisive role here. The magazine is available in a wide variety of designs including versions with a closed back or bottom plate, or even a front bracket to secure the frames.

Customized solutions are available upon request. Contact your Powatec representative for more information.
