SMT Pick-and-Place

Flexible, Modular, and Cost-Effective

Manual and semi-automatic solutions for precise component placement — flexible, operator-friendly, and ready for a wide range of board sizes and component types.

Semi-Automatic Devices

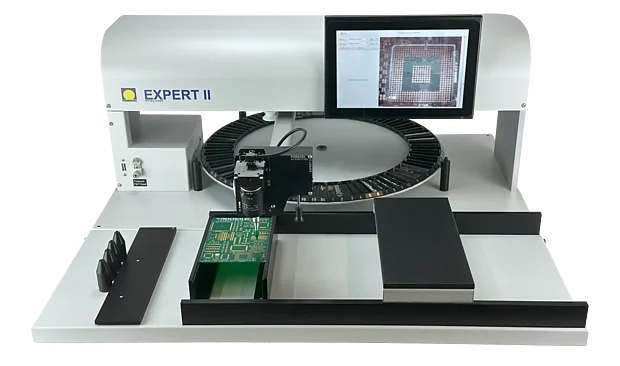

EXPERT II-M

The EXPERT II-M is the base configuration of our EXPERT II Series, combining a precise X‑Y‑Z pantograph arm with absolute positioning sensors and optional step-by-step software guidance for reliable SMT placement.

Accuracy up to 0.05 mm
15 placement nozzles for components down to 0201 size
10.1" touch display interface
Optional dispenser system
Bulk, tape, tray, and stick feeder options
Upgrade path to M-MPL

EXPERT II-M-MPL

The EXPERT II-M-MPL adds a fine-pitch table and our microplacer (MPL) to the device, enabling precise placement of fine-pitch packages like BGAs and QFNs. A high-resolution beam splitter camera overlays the component's pins with the PCB pads, allowing for easy and accurate placement.

All EXPERT II-M features and accessories included
Increased accuracy up to 0.03 mm with fine-pitch table
Microplacer for BGA, micro-BGA, QFN, MLF, QFP, PQFP, CSP, flip chip, and more
2 standard-sized MPL placement nozzles included

EXPERT II-FP

The EXPERT II-FP adds a blocking system to the pantograph arm and placement head, along with a fine-pitch table with adjustment knobs. The user positions the component near target, blocks the X-, Y-, or Z-axis in place, fine adjusts and then uses Auto-Z to lower the head automatically onto the PCB.

All EXPERT II-M features and accessories included
Increased accuracy up to 0.03 mm with fine-pitch table
Optional glass prism for top-down view, ideal for QFPs and similar components
Upgrade path to FP-MPL

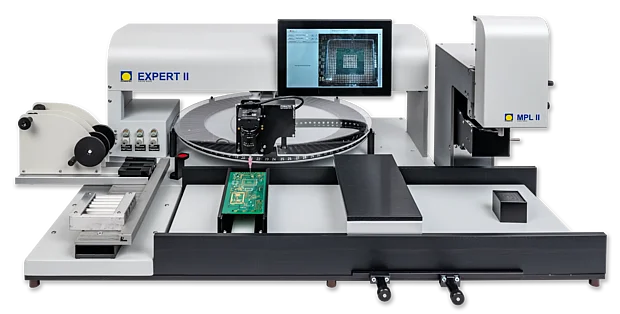

EXPERT II-FP-MPL

The EXPERT II-FP-MPL combines the blocking system, the microplacer and the fine-pitch table, making it our top-of-the-line configuration.

All EXPERT II-M-MPL and EXPERT II-FP features and accessories included
Our most capable and precise EXPERT II configuration

Manual Devices

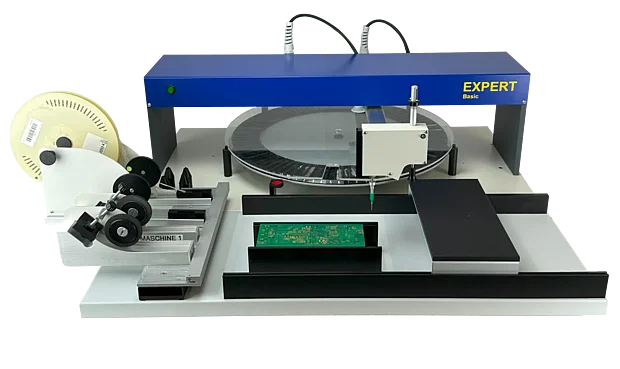

EXPERT Basic

The EXPERT Basic is an economical and versatile manual SMT pick-and-place system for small production runs, prototyping, and technical education at schools and universities.

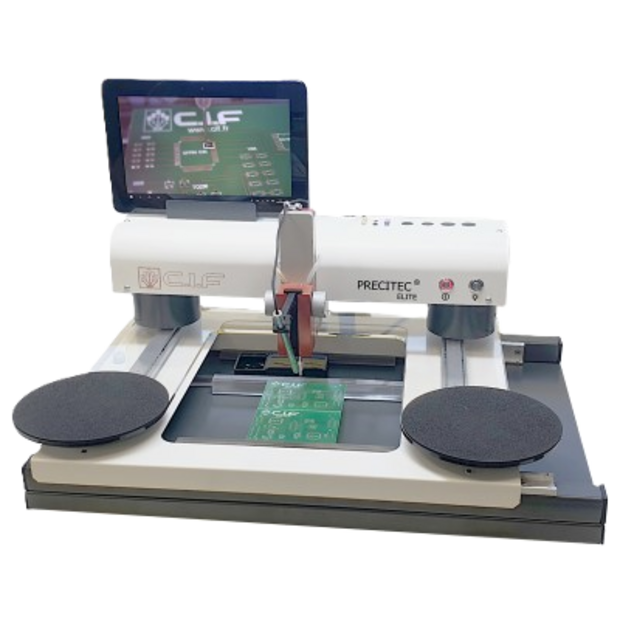

PRECITEC

A high accuracy SMT pick-and-place device - PRECITEC.Elite is a new manual system for the placement of SMT-components. It is a perfect ergonomic station including a lot of functions with an attractive price. A dispensing head support is included as standard.

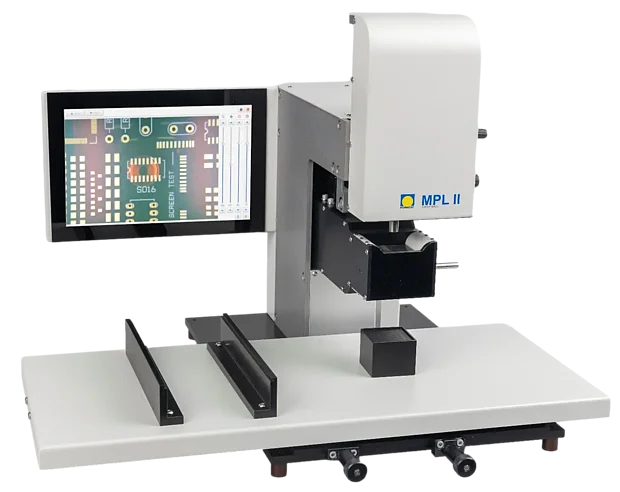

MPL II Standalone

The MPL II Standalone is ideal for precise placement of fine-pitch packages like BGAs and QFNs. A high-resolution beam splitter camera overlays the component's pins with the PCB pads, allowing for easy and accurate placement.
