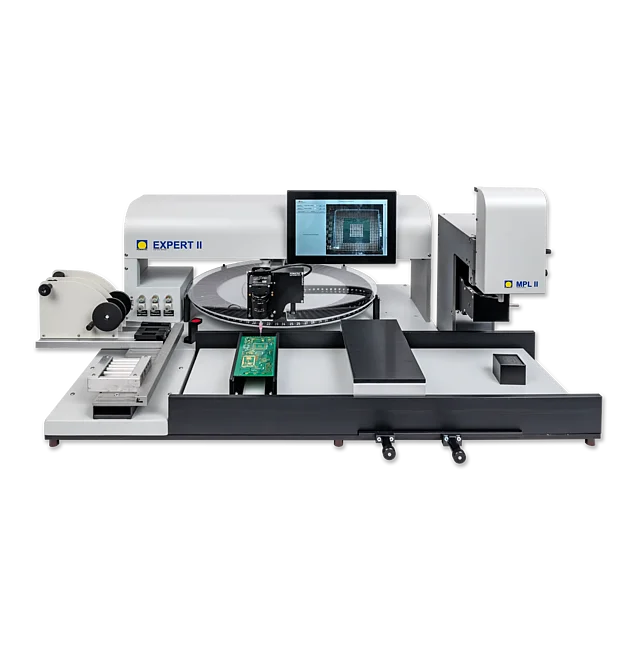

EXPERT II-M-MPL

EXPERT II-M-MPL

SMT Pick-and-Place with a Semi-Automatic / Manual Device

The EXPERT II-M-MPL adds a fine-pitch table and our microplacer (MPL) to the device, enabling precise placement of fine-pitch packages like BGAs and QFNs. A high-resolution beam splitter camera overlays the component's pins with the PCB pads, allowing for easy and accurate placement.

All EXPERT II-M features and accessories included
Increased accuracy up to 0.03 mm with fine-pitch table
Microplacer for BGA, micro-BGA, QFN, MLF, QFP, PQFP, CSP, flip chip, and more
2 standard-sized MPL placement nozzles included

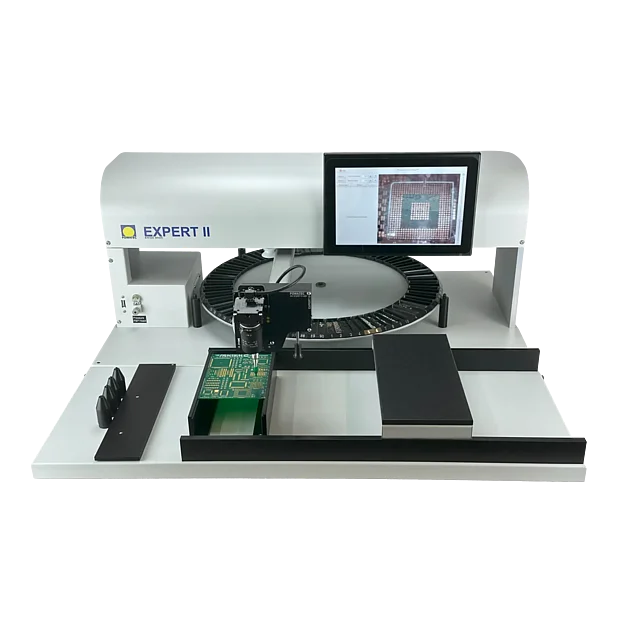

The EXPERT II from POWATEC is the successor to the widely known EXPERT series from Essemtec, in use at more than 4,000 production facilities, laboratories and educational institutions worldwide. It replaces the Expert-SA, Expert-FP and Expert-SAFP models.

Equipped with an X-Y-Z pantograph arm and absolute positioning sensors, the device offers intuitive, step-by-step guidance through the placement process. A 10.1″ full-HD touch display serves as the central control interface, while a motorized table automatically rotates to the correct component bin based on the imported PCB project.

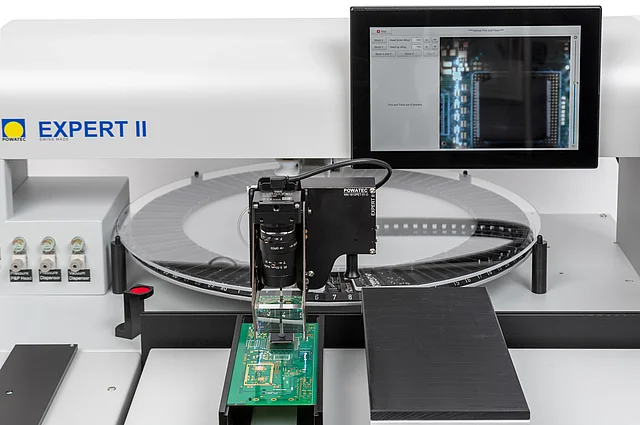

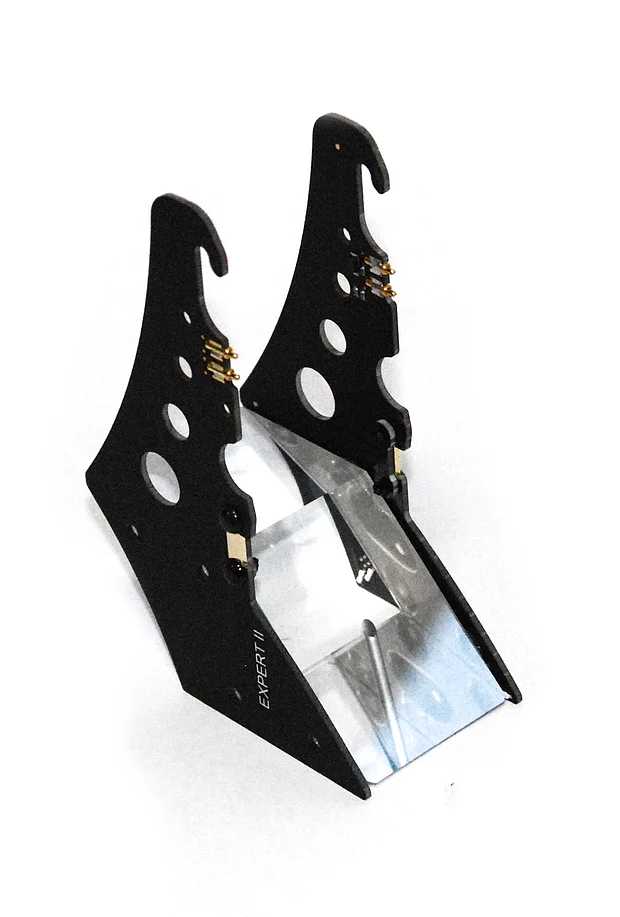

Detection sensors in the placement head recognize the operator's intended action, so the device automatically activates the vacuum and displays the correct step on screen as soon as a pick or place is initiated. The microplacer uses prism-assisted alignment to visually overlay the component's pins with the PCB pads, allowing for easy and accurate placement. The software also includes quality-monitoring algorithms that prevent parts being placed outside the parameters defined in the project.

EXPERT II-M-MPL

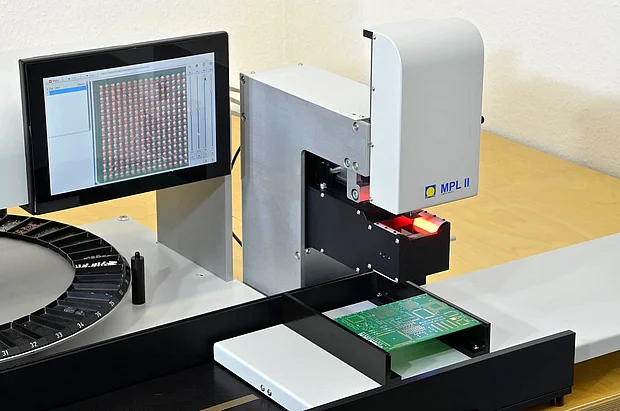

Microplacer (MPL)
Fine-pitch table with adjustment knobs
X-Y-Z pantograph arm with placement head
X-Y absolute positioning sensor system
Adjustable pressure adjustment for Z-axis damping
High-resolution camera with 1920 x 1080p
Integrated, movable 10.1” touch display with 1920 x 1080p
Adjustable LED intensity work area illumination
SW-supported vacuum control on the placement needle
Toolbox containing:
- MPL placment nozzle Ø4.0
- MPL placment nozzle Ø10.0
- 15 placement needles standard
- 1 rubber tip
- Maintenance tools
Pedal for foot operation of the vacuum
Magnetic stands and holder rails for flexible PCB fixation
MPL component holder
Fixation for feeder base plates and feeders
Slidable hand rest
Part flip station
Interface for external monitor, mouse, and keyboard
Basic software package (project creation for up to 12 components)

Bold items highlight additions to the EXPERT II-M in this model.

Full Software Package (RF-SW-EXP-II)

The full software package is activated with a license key and provides complete supervision of your project based on the imported PCBA design data. All feeding options are stored and made available for repeated actions and projects. The software monitors the correct pick-and-place location of each component and prevents placement errors. In combination with the optional motorization for the turntable, the correct component bin is automatically positioned for picking immediately after the previous component has been placed correctly. The display automatically switches between the camera view and the assembly plan.

Key features of the software are:

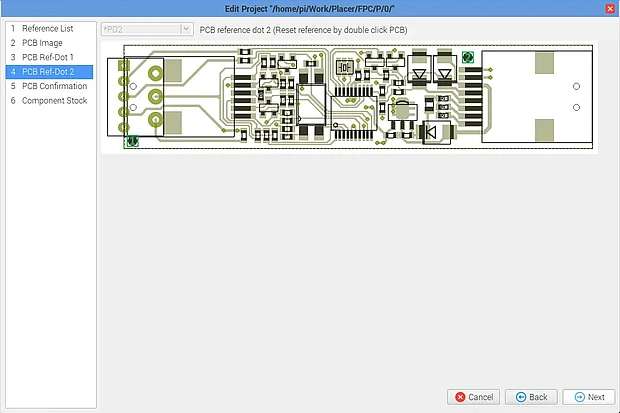

Referencing the PCB position based on a loaded reference point list. Drag-and-drop functions simplify visuals on the touchscreen.
Direct import of component lists and layouts from the PCBA design tool via USB stick. Import assembly lists to enable guided and controlled component placement.
Import circuit board images to support visual guidance.
Creation and storage of feeder inventory. Tables and trays can then be reactivated for the next project.
Ability to create your own feeders and manage their inventory.
Creation of assembly projects for single PCBs or panels with repetitive PCB pat-terns.
Automatic calibration feature to ensure placement accuracy and quality.

Software Package Comparsion

Feature	Basic	Full
Live camera image on placement head displayed on a 10.1″ touchscreen	●	●
Automatic vacuum control via pick-and-place recognition	●	●
Microplacer view on 10.1″ display	●⁶	●⁶
Motorized turntable controlled from placement head button	●⁷	●⁷
Dispensing control via dose settings and foot pedal	●⁸	●⁸
Supported X-Y-Z blocking system	●⁹	●⁹
Auto-Z function with Z-blocking for precise nozzle placement at fine-tuned X-Y coordinates.	●⁹	●⁹

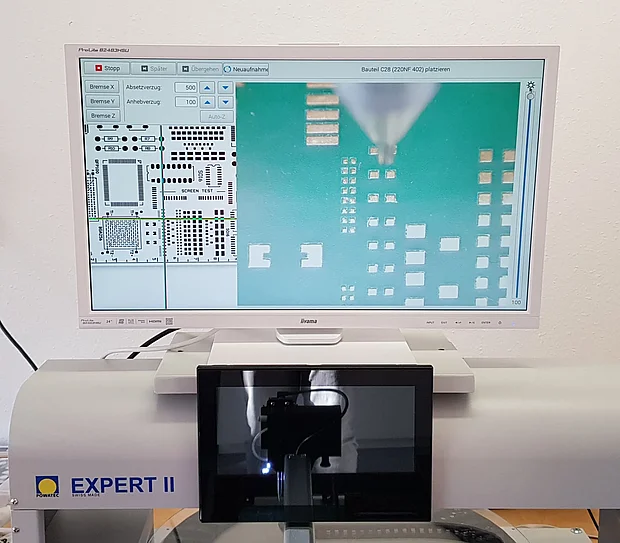

External monitor support via HDMI	●¹⁰	●¹⁰
PCB position referencing for software-assisted correct component placement. The software verifies correct component placement and provides visual guidance on the 10.1″ display.		●
Import component lists and layouts from PCB design tools via USB		●
Import PCB images to aid visual guidance		●
Create and store feeder inventories; reuse trays and tables for new projects		●
Custom feeder creation and inventory management.		●
Assembly projects for single PCBs or repetitive panels.		●
Automatic calibration for consistent placement accuracy		●
Simultaneous assembly of multiple identical PCBs.		●
Component import functionality	Max. 20 components	No limit

⁶ This software function is activated with an MPL configuration
⁷ This software function is activated with the motorized turntable option (NRF-TT-MOT-EXP-II)
⁸ This software function is activated with the dispensing option (NRF-DISP-EXP-II)
⁹ This software function is activated with an FP configuration
¹⁰ This software function is activated with the external monitor (RF-MON-EXP-II)

Working Dimensions
Max. placement area of PCB	450 mm x 250 mm (17.7" x 9.8")
PCB Thickness	0.5 mm...5 mm (0.02"...0.2")
Max. component height backside	35 mm (preassembled parts)
Min. component size	0201 (imperial according to EIA standards)
Min. pitch distance	0.3 mm (with MPL or prism)
Max. component size with
Placement head	40 mm x 40 mm
Placement head via prism	36 mm x 36 mm
MPL	48 mm x 48 mm
Max. component height	10 mm (0.4") / 16 mm (0.63") with special nozzle
Accuracy lever position sensor	0.05 mm in horizontal directions (x- and y-axis)
Accuracy fine pitch table	0.03 mm in horizontal directions (x- and y-axis)
Internal display	10.1" touch display, 1920 x 1080 resolution, Laterally moveable
Ports
Display output	HDMI type A
Network	RJ45, TCP/IP
Peripherals	2x USB type A for a mouse and keyboard
Data Transfer	1x USB type A for USB stick
Power supply	110-240 VAC, 50/60 Hz
Power consumption	51 W
Compressed air supply	5 bar...6 bar (72 psi...87 psi), ø6 mm tube, Oil-free, dry, and clean
Vacuum supply	No external vacuum required
Dimensions
Width	760 mm (may increase with some feeder options)
Depth	800 mm / 1110 mm incl. outreach
Height	420 mm
Weight	16 kg
Certifications
	CE-certified
	IEC 204-1 safety standards

We're updating this section for you. In the meantime, you'll find the latest information in our brochures under Downloads.

The Turntable - Our Integrated Solution Ideal for Bulk Parts

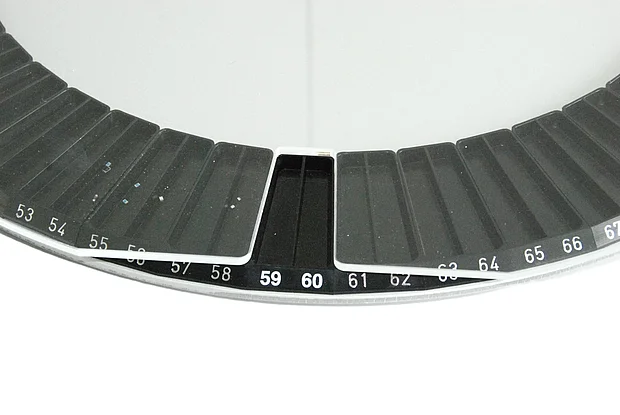

Turntable

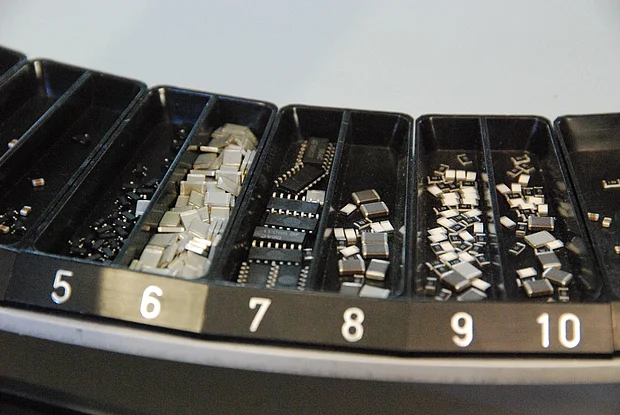

The turntable is our storage solution for organizing individual component types, available with either 45 or 90 bins.

with 45 Bins (TT-EXP-B45)
with 90 Bins (TT-EXP-B90)

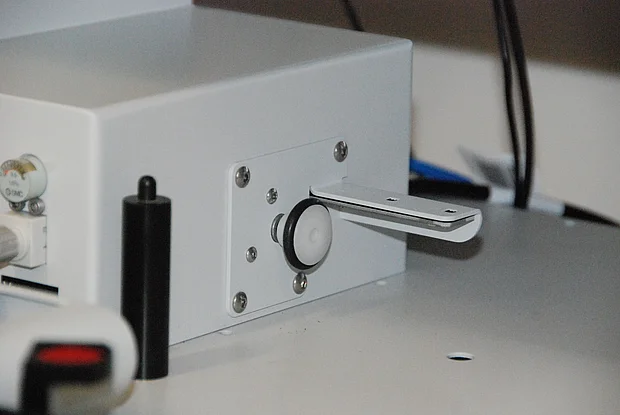

Motorization for Turntable (NRF‑TT‑MOT‑EXP‑II)
Motorization allows the rotation of the turntable to the required component bin.

The motor is either operated by two buttons on the placement head (included basic software) or automatically by the full software package according to a project import.

Turntable Cover
Cover for the turntable to protect components during operation and storage. The cover has an opening for component handling, which can be rotated to the desired working position. Availabe in regular acrylic or in ESLON acrylic for ESD-sensitive components.

Acrylic (TT-EXP-AC)
ESD (TT-EXP-EC)

Locking Mechanism (TT-EXP-LM)
To fasten the cover (acrylic or ESD) to the turntable, ensuring components remain in the bins during storage or when exchanging it with another turntable.

Tape Reel Feeder

This device presents components ordered on reels to the user for placement. The protective cover and used tape are diverted away from the user to keep the pick area uncluttered.

Available for 8mm, 12mm, and 16mm wide reels.

Universal Stick Feeder

This device presents components ordered on sticks to the user for placement. The feeder enables the user to position the stick so that only the desired number of components are exposed, thus avoiding more components than necessary from being poured out.

Available for SO8-S028, SO8L-SO28L, PLCC28-PLCC44, and PLCC52-PLCC84.

Short Tape Feeder

This device allows users to use short pieces of tape of varying widths. In applications where large quantities of a given component are not needed or possible, the Short Tape Feeder is a flexible option to handle short pieces of tape that are not on a reel.

This device contains five slots which support 3x8mm, 1x12mm, and 1x16mm width tapes. It can be mounted directly on the sliding bar, or on a base plate with other feeders.

Tray Table

The Tray Table is mounted onto the sliding bar of the device and provides a flat surface on which a tray of components can be placed. For applications where the required components are provided on a tray (e.g. a JEDEC tray), this device provides a flat and secure interface to ensure components can be properly picked.

The dimensions of the tray table are 310mm x 135mm (12.2" x 5.3").

Note: when the Tray Table is mounted, there is no space for other feeders.

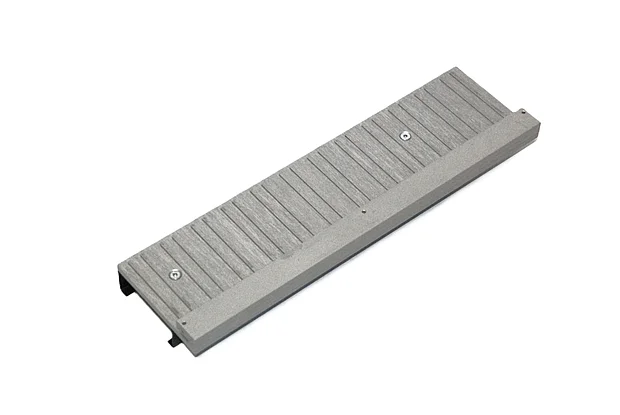

Base Plate

Some of the feeder options require a base plate to be in place so that they can be properly installed. These base plates slide onto the sliding bar of the device and provide slots where different feeders can be easily installed and removed, as needed.

The Long Base Plate contains 12 slots for feeders and the Short Base Plate contains 5 slots for feeders.

Custom Feeders

If your application requires more feeders to be supported, or customization of any kind, contact your Powatec representative to see how we can best support your needs.
